Description
Specification
Model:
|
RPM29001
|
|
Material
|

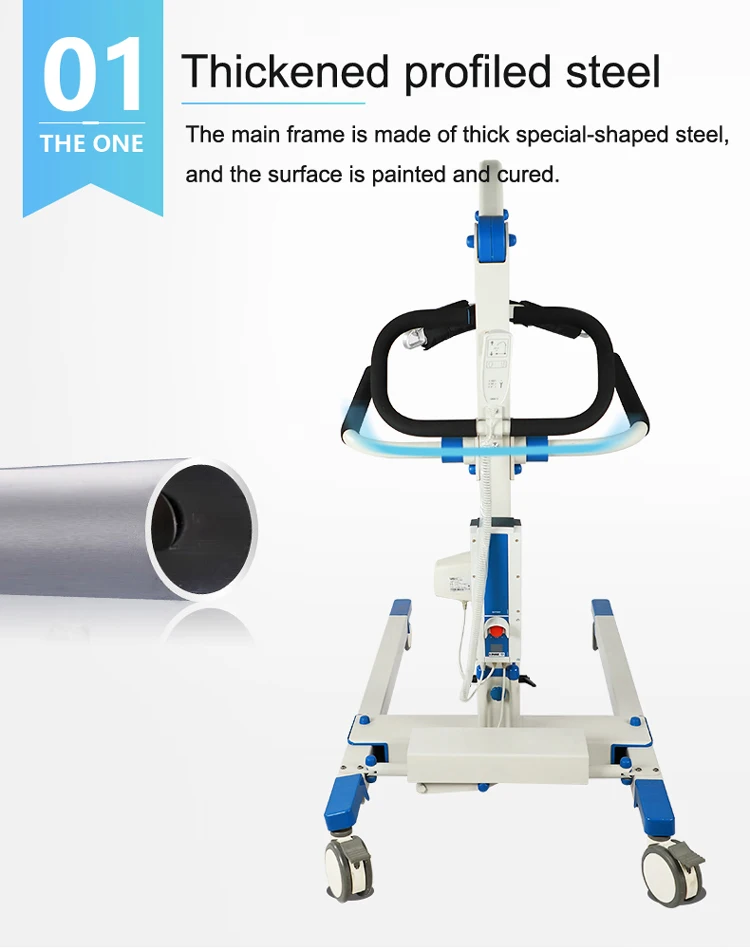

Aluminum Alloy Frame
|
|
Overall Size
|
1510*735*1460 mm
|
|
Base Width
|

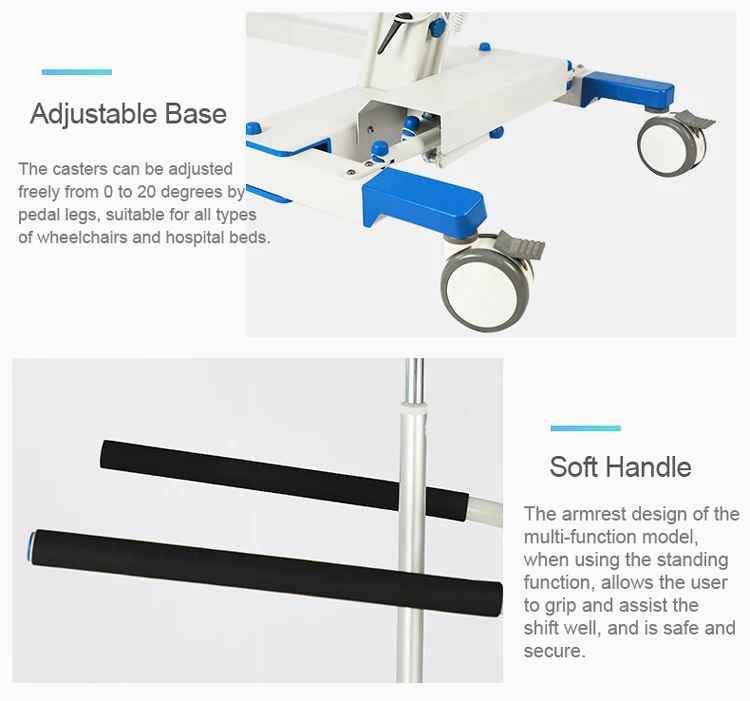

735-960 mm
|
|
Height
|
710-1980 mm
|
|
Load Capacity
|
320 kgs ( 705 lbs )
|
|
Max load
|
Push 12000 N
|
|
Power rate
|
24V max 9.5 AMP
|
|
Duty Cycle
|
10%, max 2min. / 18min
|
|
Front wheel
|
5″
|
|
Rear wheel
|

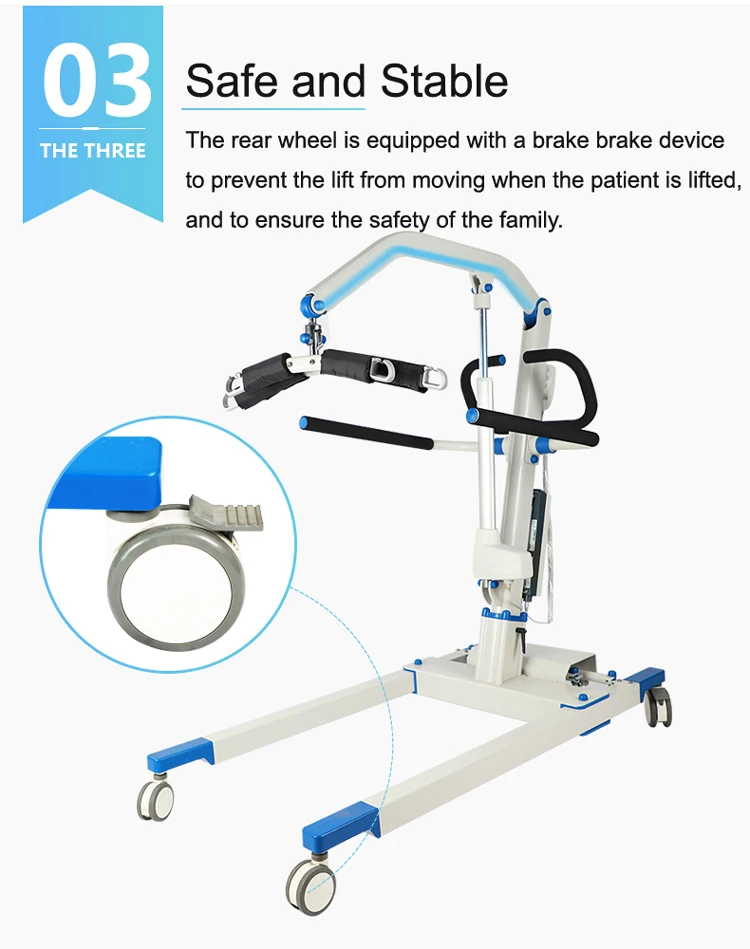

4″ with brake
|
|

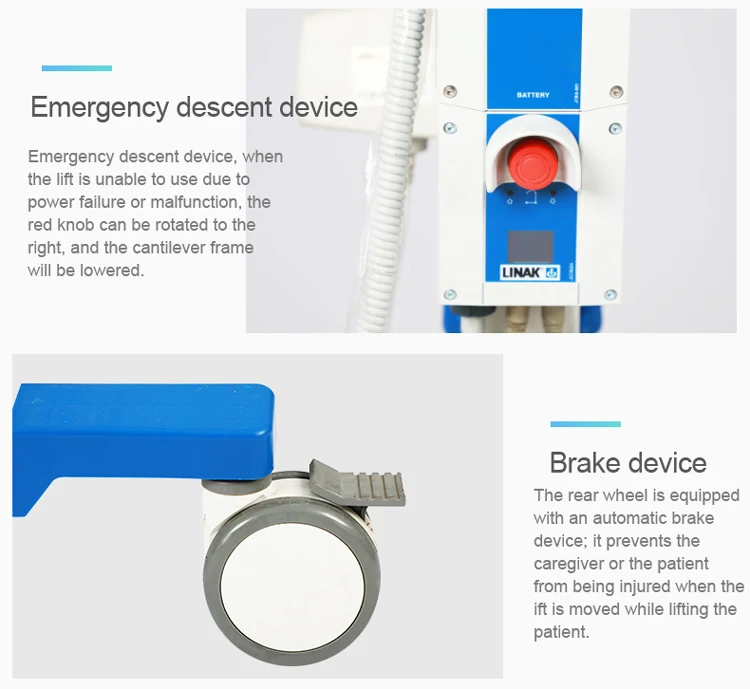

Emergency Lowing
|
Mechanical
|
|
Protection Class
|
IPx4
|
|

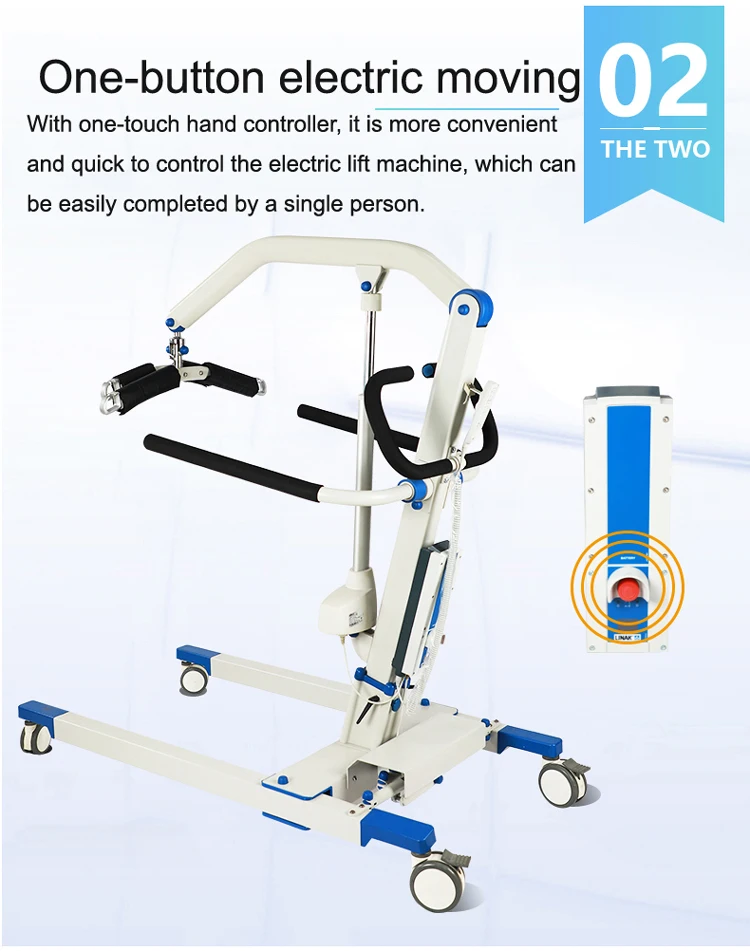

Feature: Aluminum alloy frame, 24V actuator with rechargeable battery. PE handle provide excellent comfort. Base width is adjustable by electrical power. Easy for operation with emergency stop button.
|
